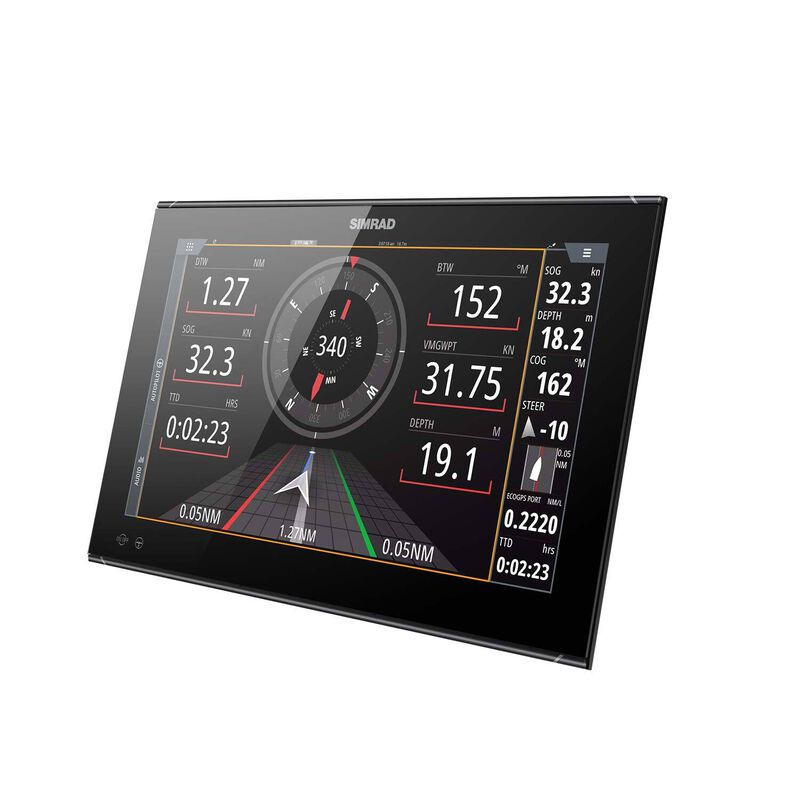

SIMRAD NSO evo3S 19" Multifunction Display
OVERVIEW & SPECS
The evo3S features the brand new iMX8 processor that allows for twice the performance of the previous generation processor.
NSO evo3S MPU replaces NSO evo2 Dual Processor black box with separate touch monitors (No change to MOXX-T monitors). Create truly customised multi-display systems with the NSO evo3S Processor – the ideal solution aboard powerboats 10 metres (33 feet) and larger. This marine processor can drive two independent displays, supporting both touchscreen and non-touch monitors. Expand and integrate to build your preferred system including navigation, radar, sonar, autopilot, and more.
Customize and build your preferred system
Build a tailored, multi-display system that is perfect for you and your boat with the modular NSO evo3S system. The NSO evo3S marine processor is a compact ‘black box’ solution containing two Quad Core processors and the connectivity options needed to integrate and expand your system vessel-wide. Customize it the way you want: add two touchscreen or keypad monitors in your choice of size, with each functioning as a separate multifunction display; connect with a wide range of Simrad and third party accessories from charting, radar and sonar, to autopilot and on-board entertainment, for complete system control from every networked display on board.
Dual monitor support - enabling two independent stations
An NSO evo3S Processor works as the brain of your boat: a compact marine computer that is able to drive two independent touchscreen or keypad monitors (sold separately). Each monitor works as a full-featured multifunction display providing access to charts, radar, sonar, and more. Add two displays side-by-side at a single station, or create two separate stations for individual crew members to use simultaneously. Network additional NSO evo3S processors to add extra displays, perfect for dual-helm vessels.
Modular design for simple and cost effective installation
NSO evo3S offers a flexible and cost effective way to create a multi-display system for your boat, with just one ‘black box’ processor powering two separate displays. A modular design simplifies wiring and avoids the need to carry extra hardware, such as GPS receivers or sounder modules, for every display on board. Accessories can be added as required – simply connect to your NSO evo3S below deck without the need to be networked with each individual display at the helm.
Touchscreen or keypad for complete control
Command NSO evo3S with Simrad MO-series touchscreen monitors, or an optional OP50 keypad and rotary dial. Switch seamlessly between the convenience of a touchscreen and the all-weather reliability of a classic keypad. Add a standard USB mouse, trackball, or keyboard to simplify tasks such as route planning, ideal for NSO evo3S displays installed in a pilothouse or cabin.
Quad Core processors for supreme performance
NSO evo3S features two quad-core processors delivering category leading response times across connected displays. Navigate easily with fast chart redraws, switch quickly between different displays or instruments, and experience seamless performance in demanding applications such as the optional StructureScan® 3D imaging system.
Industry-standard vessel-wide connectivity
NSO evo3S systems offer vessel-wide integration, with Ethernet and industry-standard NMEA 2000® connectivity with an extensive selection of Simrad and third party accessories. Find fish with a wide range of sonar and transducer options, gain greater situational awareness with a Simrad radar, free your hands from the wheel with autopilot, or cruise to your own soundtrack with the SonicHub®2 marine audio system, JL Audio, Fusion and more.
Simrad MO series monitors - designed with the marine environment in mind
SIMRAD's MO series marine monitors are the perfect complement to your NSO evoS3 display system. These IPX6 water-resistant displays are available in a range of sizes, with the choice of either touchscreen or keypad versions. Our touchscreen monitors are perfect for outdoor use, featuring extra bright sunlight-viewable screens, while our non-touch monitors are great for enclosed pilothouses or cabins.
Ultimate Clarity
NSO evo3S delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.FULLY CONNECTED/AUTOPILOT INTEGRATION
Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provides almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more. Simrad NSO Evo3S can function as an autopilot controller when connected to a Simrad autopilot system via NMEA2000.NSO Evo3S is compatible with NAC-2 & NAC-3 Autopilot computers, DrivePilot™ and OutboardPilot™.
SWIFT RESPONSE
Every NSO evo3S display features an integrated six-core processor for ultimately smooth response, from charting to StructureScan® 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbour.Glass Helm Style
NSO evo3S glass helm systems offer the perfect combination of form and function. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant. Low-profile glass helm styling complements any helm design, from ultra-modern to timeless classic.ENGINE INTEGRATION
Simrad NSO evo3S MFD supports J1939 engine integration, it can display J1939 information directly on the instruments page as well as act as a NMEA2000 bridge, passing J1939 information onto NMEA2000 for display on other instruments.
- High bright, wide viewing angle displays
- Full HD (1920x1080) on all sizes
- Low Profile Glass dash styling
- Micro SD card slot
- Operable with OP50 Remote
- Direct Audio, Autopilot and engine connection and control
- Magnetic sun covers for all sizes
- Easy to use multi touch software
- Safely and easily navigate using your favourite cartography (Insight, CMAP, Navionics)
- Determine depth, bottom type and find fish using one of the many echosounder technology options
- Quick and simple control of entertainment systems connected on NMEA2000
- Vessel circuit control when connected to a NaviOP or C-zone digital switching system
- View and monitor engine data while underway
- Built in Wi-Fi connectivity
- Software update notifications and downloads when connected to the internet
- Screen mirroring when connected to a mobile device
- Advanced networking and I/O options
- CAN ports (NMEA 2000 and J1939)
- NMEA 0183 serial port
- Ethernet (3 RJ45 ports)
- Analogue video (2 input ports)
- HDMI video (1 Input, 1 Output)
